SPECIFICATIONS

ALLOYS AA

1050, 1060, 1070, 1100, 3003, 3004, 3005, 3103, 3105, 5005, 8011

TEMPER

H44, H45, H48
(as per customer requirement)

COIL WEIGHT

1 to 4.5 MT

COATING TYPE

PVDF, PE & Service Coat

Thickness Range

0.35 – 1.20 mm

Width Range

150 - 1260 mm

COLOR COATING

The coil coating process it is a high-volume operation that produces a perfect finish based on a liquid application of the common resins such as Polyester (PE) and Polyvinylidene fluoride (PVDF). Liquid coating is well known to have a higher performance for gloss, resistance and uniformity of area coverage.

The aluminum substrate gets degreased and chemically pre-treated. Application of primer coating and top coating takes place along with ancillary treatments. The typical paint system requirements took into consideration are formability, scratch-resistance, appearance and weather ability.

LRV (light Reflective Value) and SRI (Solar Reflective Index) are top coating colors tested by DCL.

  • Uncoiling
  • Drying
  • Top coating
  • Side Trimming
  • Roll Forming
  • Chemical Pre-treatment
  • Primer coating
  • Curing Oven
  • Recoiling

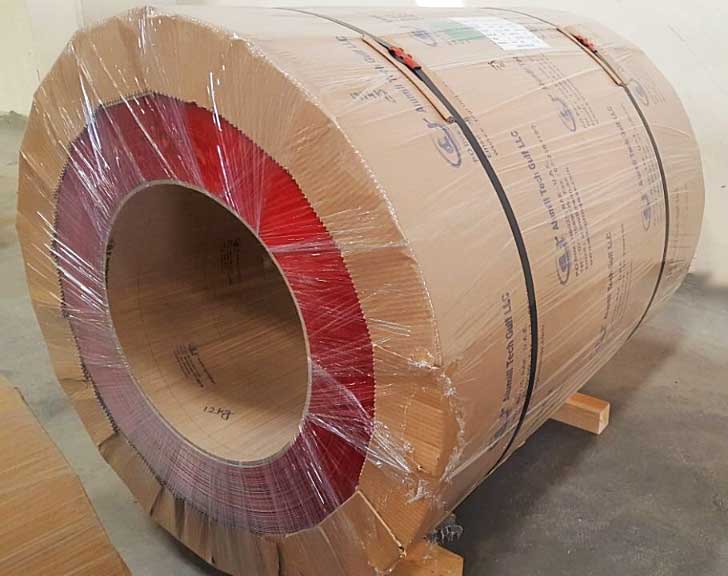

  • Packing

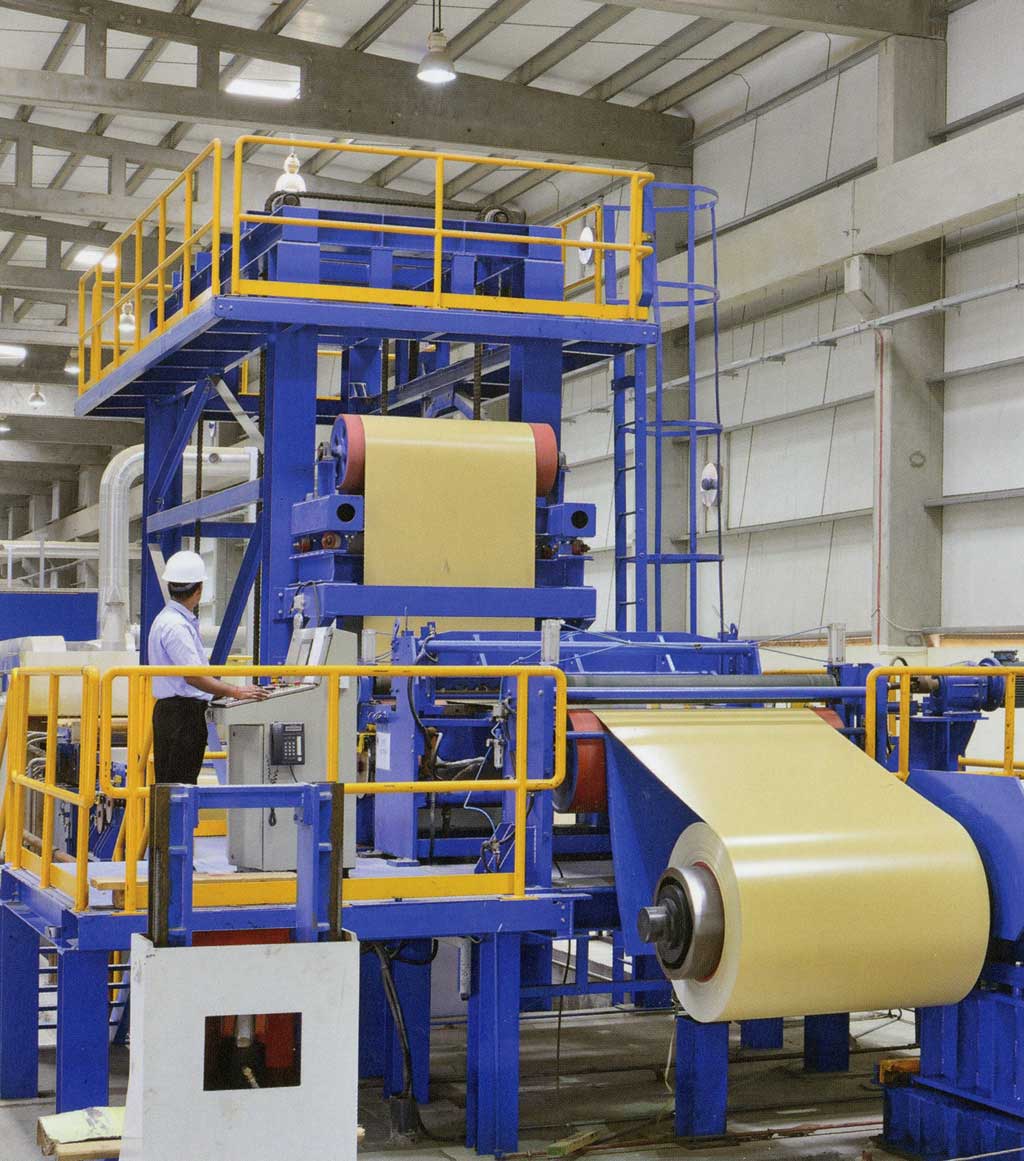

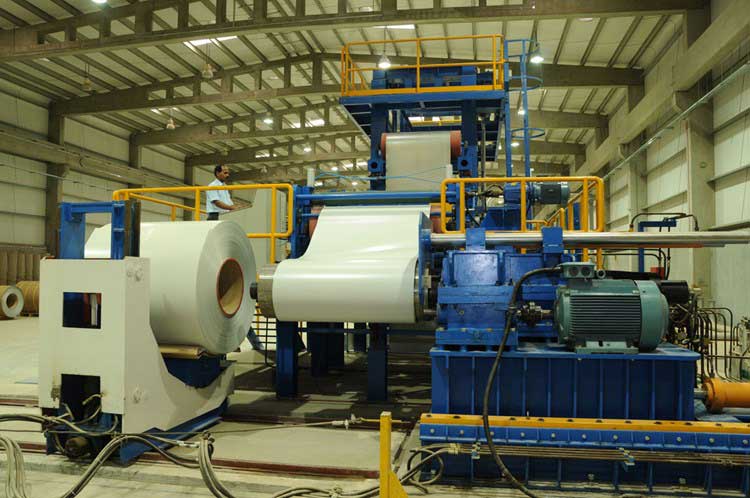

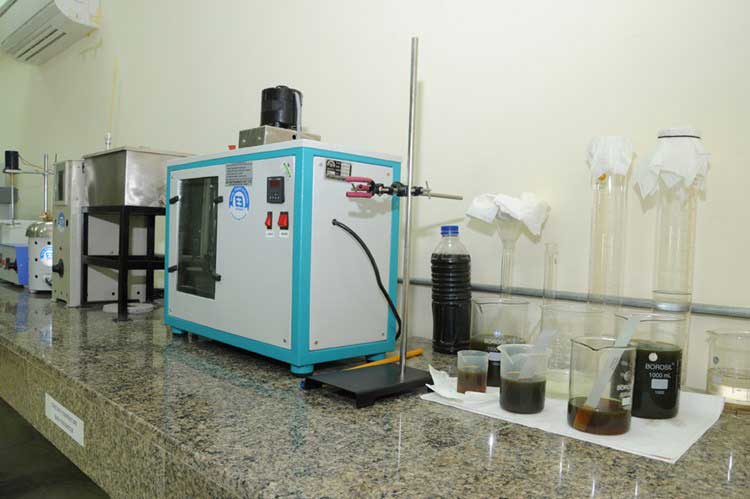

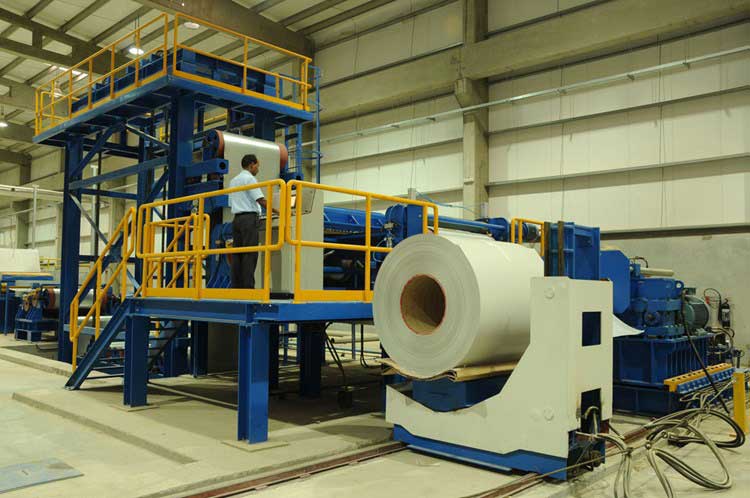

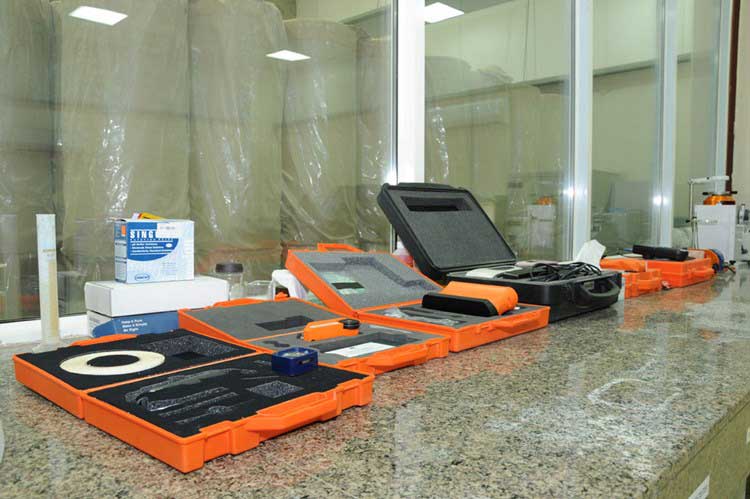

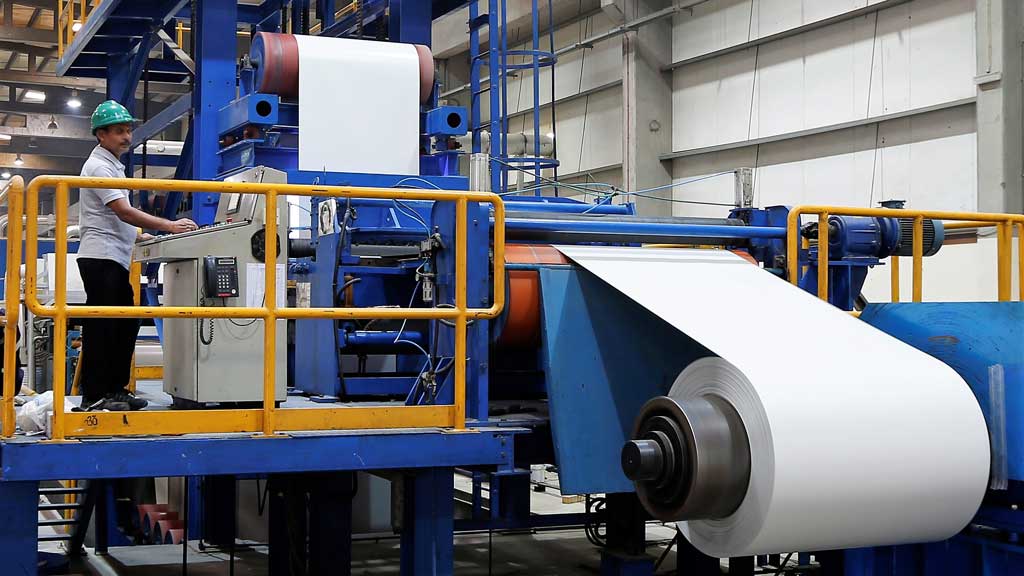

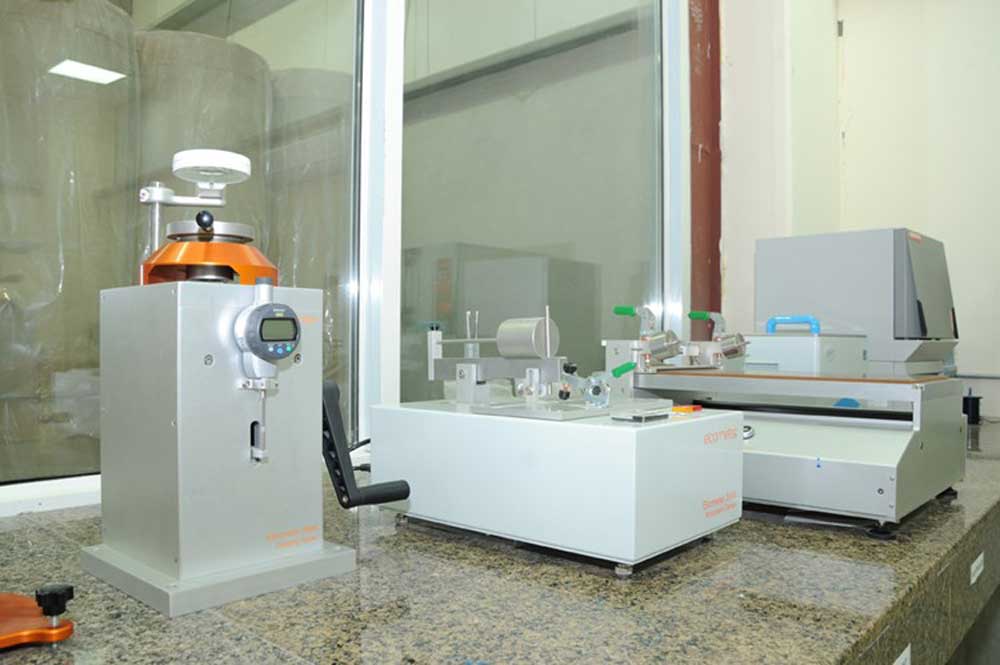

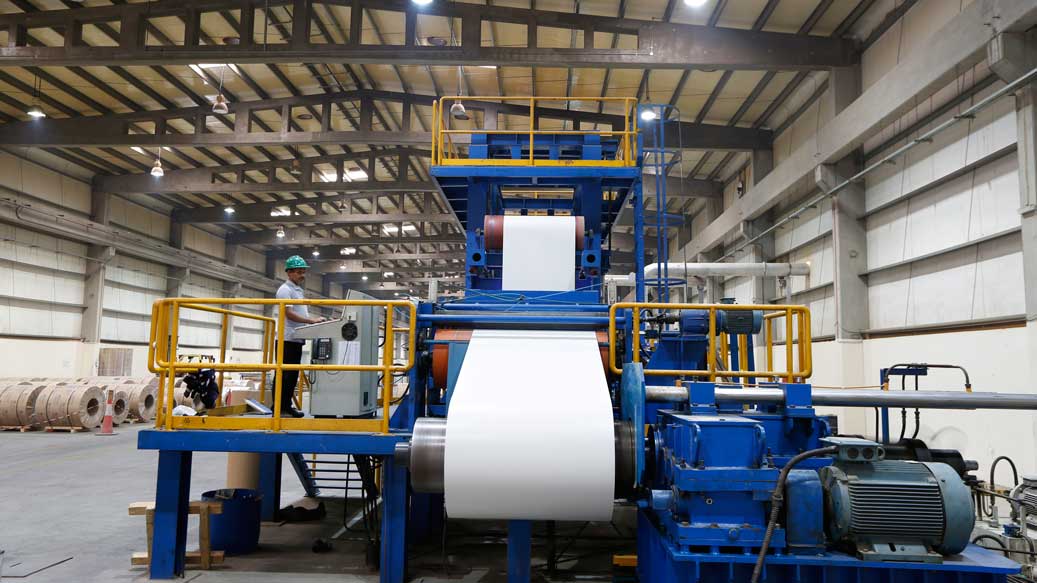

COLOR COATING GALLERY
