COILS AND SHEETS

Alumill Tech Gulf LLC is one of the foremost industrial leaders in top quality aluminum flat-rolled products, color coated coils and sheets. The factory is one of the largest in all aluminum industry in the Middle East and currently the only producer of continuous casting & Cold rolling Mill in the United Arab Emirates.

Allmill Tech Gulf manufacturing plant operates out of a wide-spread campus of over 55,000 square meters in the industrial area of Ras Al Khaimah (U.A.E.).

The integrated cast house provides continuous production for subsequent rolling mill process of coils, based on the advanced technology of Presezzi SpA (Italy). The state-of-the-art line is fully equipped lab for end-to-end testing solutions of materials.

CAST COILS

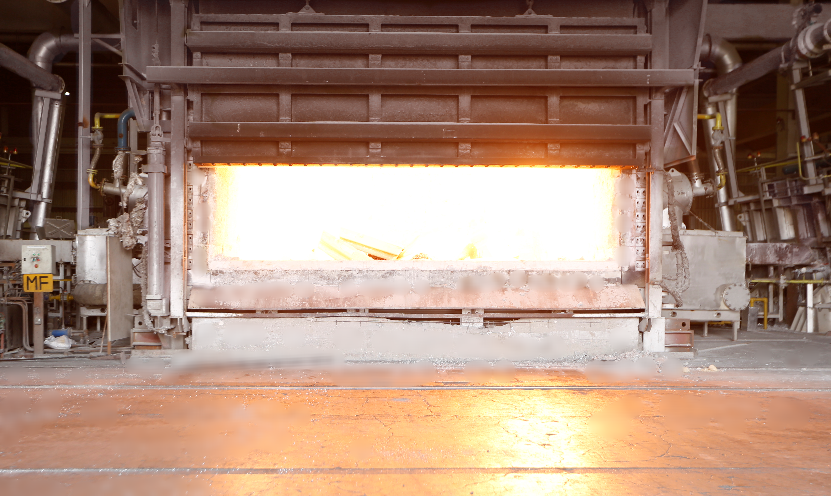

We offer high quality Cold Rolled Pure aluminium ingots are melted in the furnace, alloyed and analysed to ensure that the correct composition is achieved. The alloy is created and transferred to the holding furnace for direct casting.

In the Cast House the hot metal is continuously casted and solidified in the shape of coil form. Subsequently trimmed in the caster machine with on line edge milling for the next multi-stage rolling mill.

Fields of Applications:

Roofing & Claddings, Rolling shutters, Facade & Awnings, Interior ceilings, Transportation Vehicles etc.
Hot Casting Capacity MT/Year Alloys Temper Thickness range (mm) Width range (mm) Standards
Twin Roll Casting 25,000 1XXX, 3XXX,
5XXXX, 8XXX		 F 4.00 - 7.00 800 - 1300 BS EN 485-4

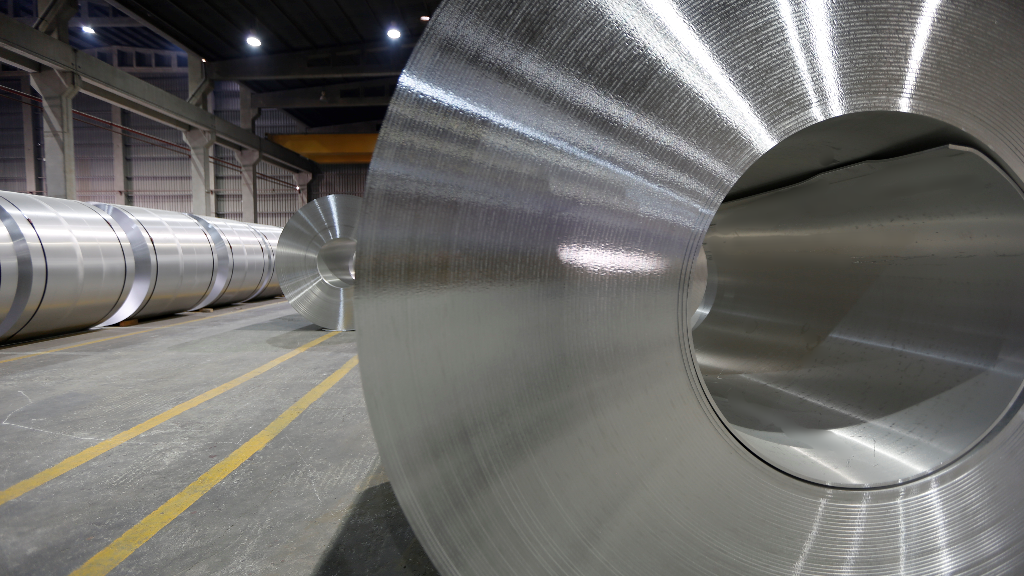

COLD ROLLED COILS & SHEETS

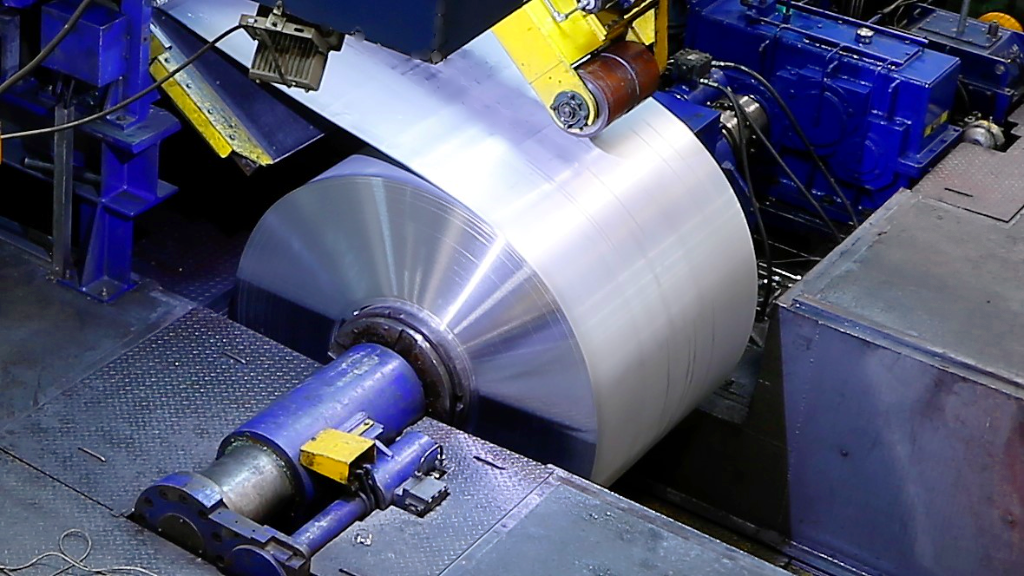

We offer high quality Cold Rolled coils are processed in the rolling mill to reach the thickness as per customer’s specific requirement.

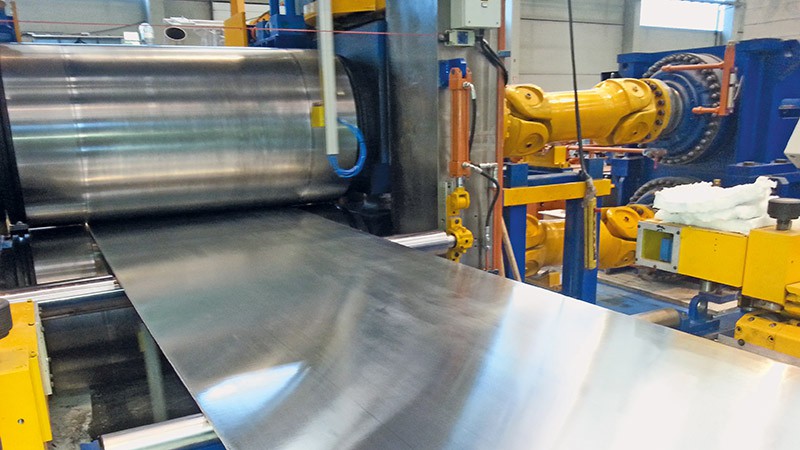

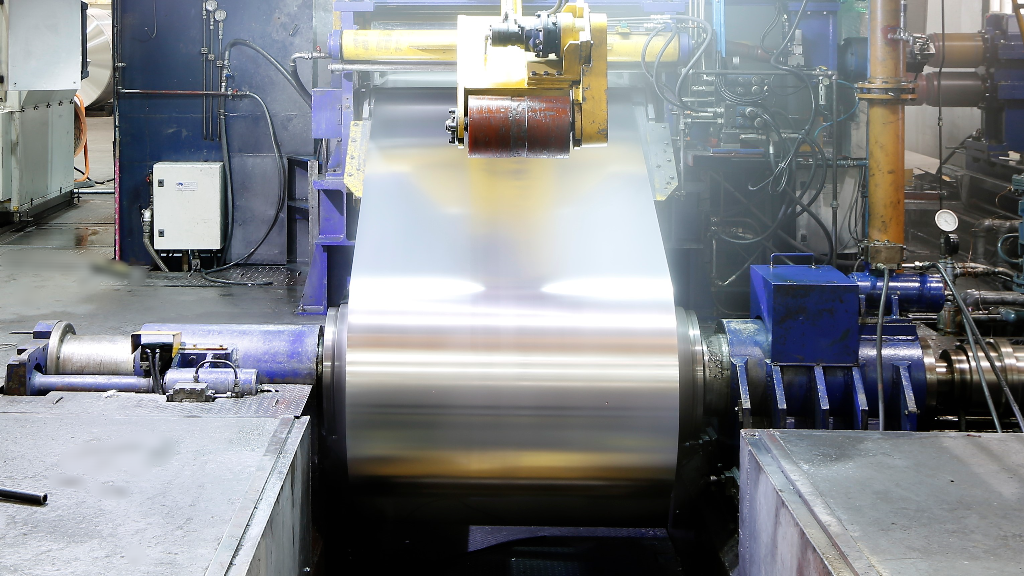

The reversible rolling mill is equipped with automatic gauge measuring unit on each side to have a precise control on thicknesses and minimum tolerances. Further treatment in the annealing furnace is processed to achieve the required temper-strength.

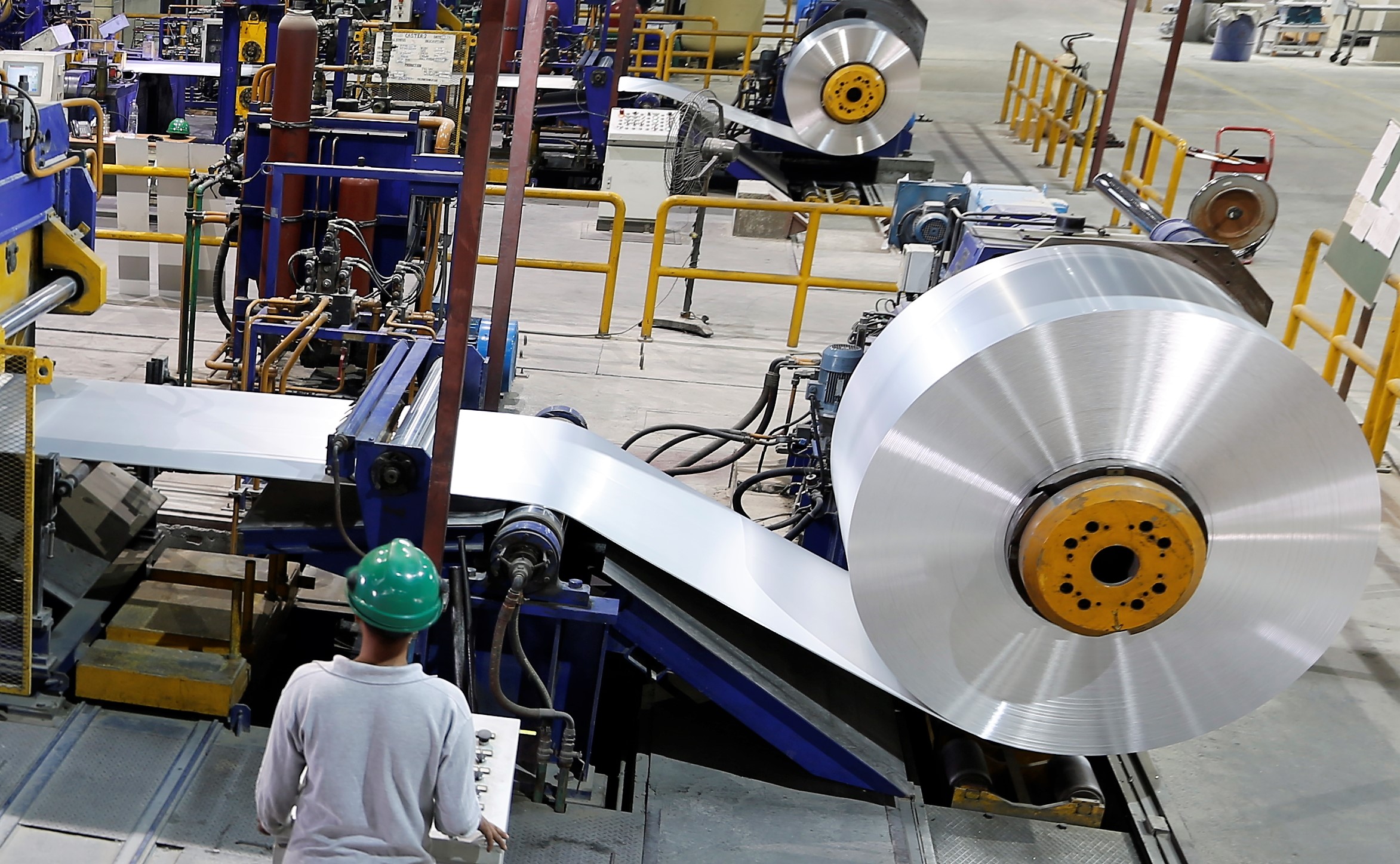

Tension Levelling - Cut to Length Line - Slitting Line - Embossing Line

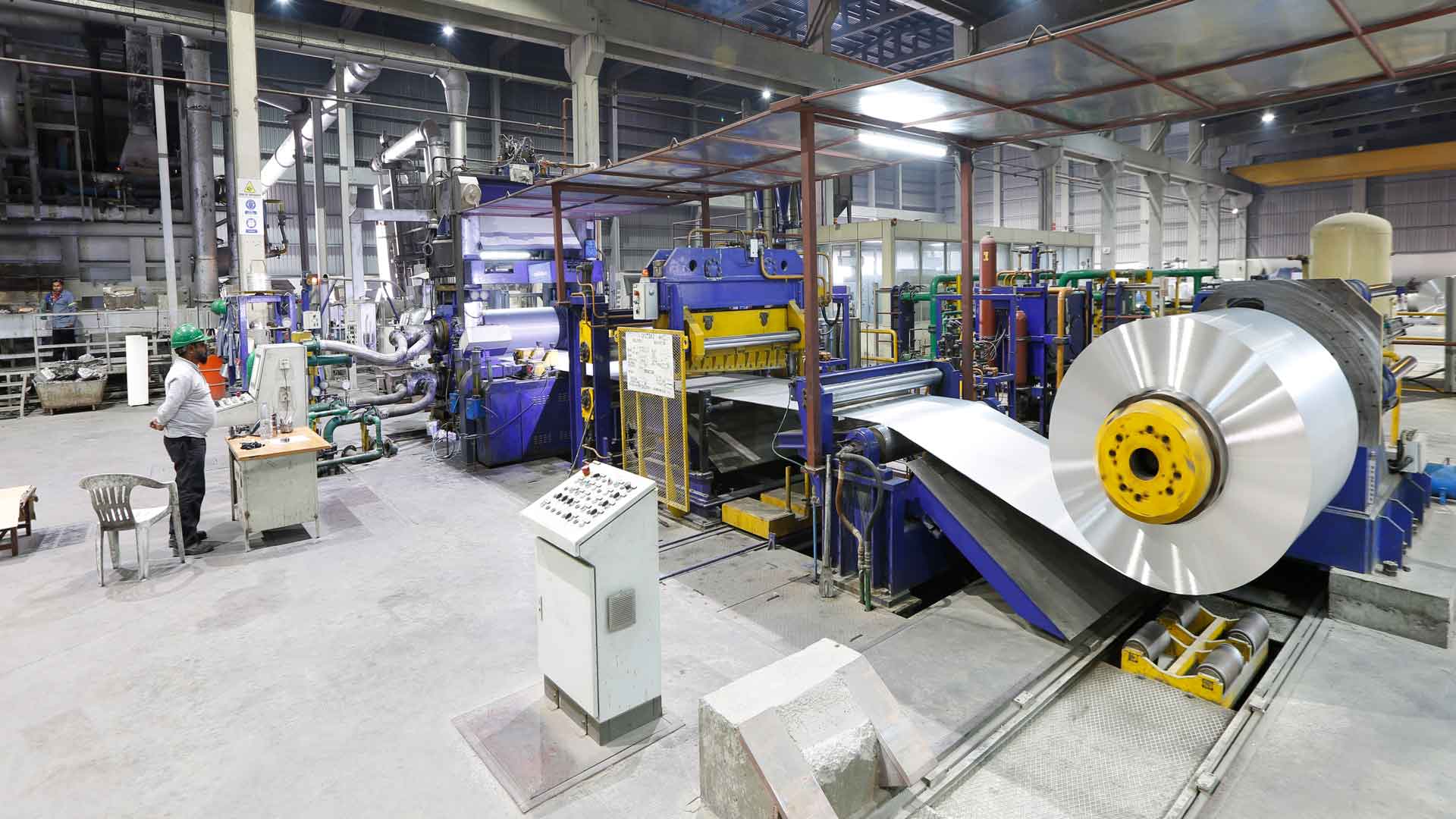

The tension levelling line aim to test and improve the flatness of the material prior to coating or cut to length for final output of coils and sheets. The slitting line for side trimmings and exact required size for mill finish or coated coils.

Alumill Tech can process an additional step to emboss the aluminium surface in mill finish or coated coils & sheets.
Cold Rolling Mill Capacity MT/Year Alloys Temper Thickness range (mm) Width range (mm) Length range (mm)
Cold Rolled Coils 25,000 1XXX, 3XXX,
5XXXX, 8XXX		 F – O H12/28 0.25 – 3.00* 150 – 1260 Cut to Length
Cold Rolled Sheets 25,000 1XXX, 3XXX,
5XXXX, 8XXX		 F H12/28 0.50 – 3.00 500 – 1260 Cut to Length or standard 1000 – 4000
Stucco Embossed Coils & Sheets 25,000 1XXX, 3XXX,
5XXXX, 8XXX		 F H12/28 0.30 – 1.20 500 – 1260 Cut to Length or standard 1000 – 4000

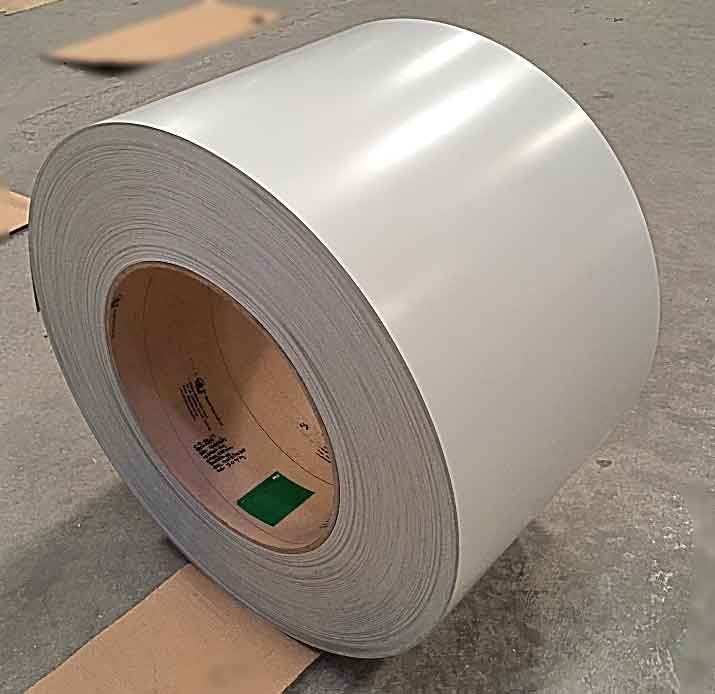

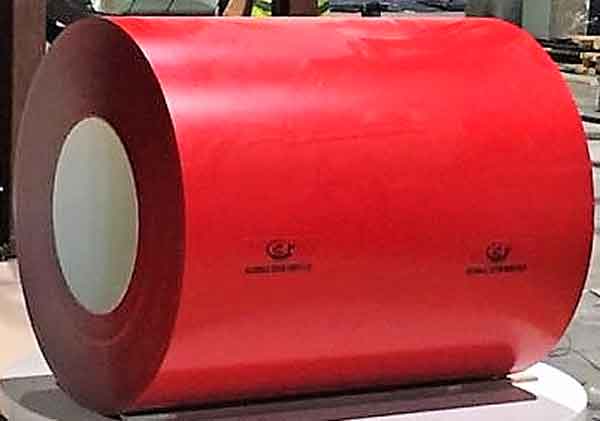

COLOUR COATED COILS

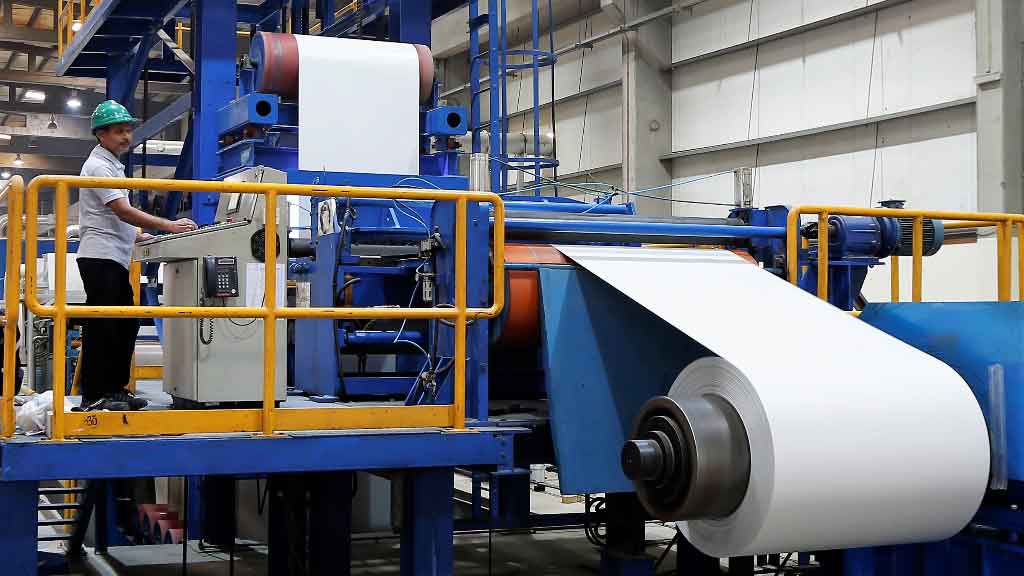

We offer high quality Cold Rolled The coil coating process it is a high-volume operation that produces a perfect finish based on a liquid application of the common resins such as Polyester (PE) and Polyvinylidene fluoride (PVDF). The process involves uncoiling, chemical pre-treatment, application of primer & top coating and recoiling.

Fields of Applications:

Roofing & Claddings, Rolling shutters, Facade & Awnings, Interior ceilings, Transportation Vehicles etc.
Coils & Sheets Coating Capacity MT/Year Alloys Temper Resin Coating Thickness (μm) Thickness range (mm) Width range (mm) Length range (mm)
Line no.1 18,000 1XXX, 3XXX,
5XXXX, 8XXX		 H46 PE
PVDF		 5 + 20 top
5-7 bottom
TCT = BMT + 30
0.35 – 1.20 150 - 1260 Cut to Length or standard
1000 – 4000

STANDARD PACKING

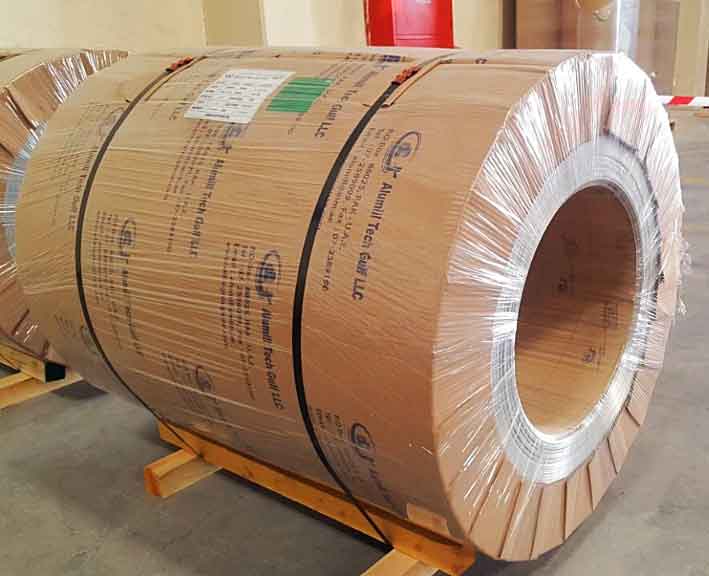

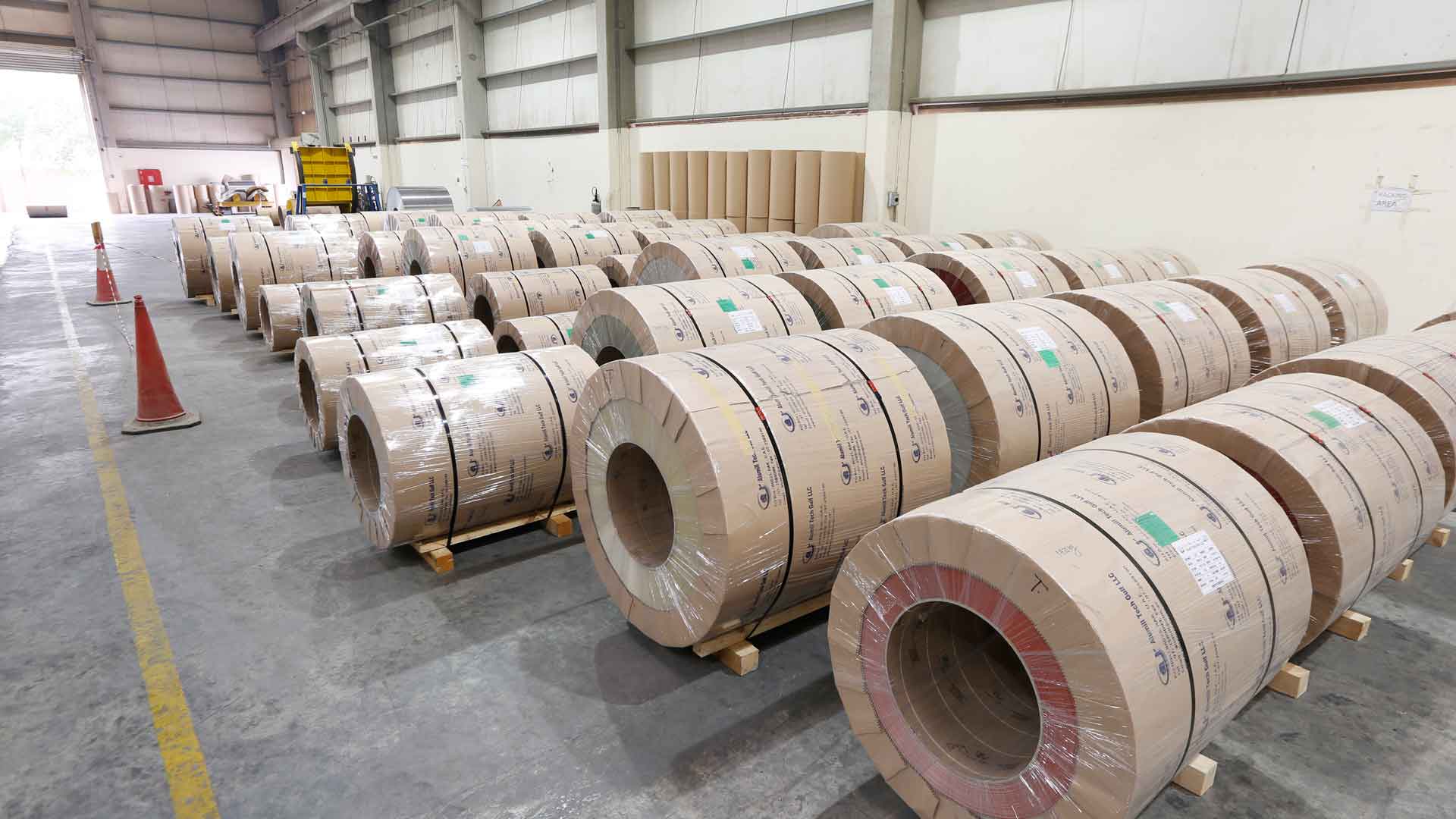

Aluminium coils export standard sea worthy wooden pallet eye to wall (Horizontal Type)

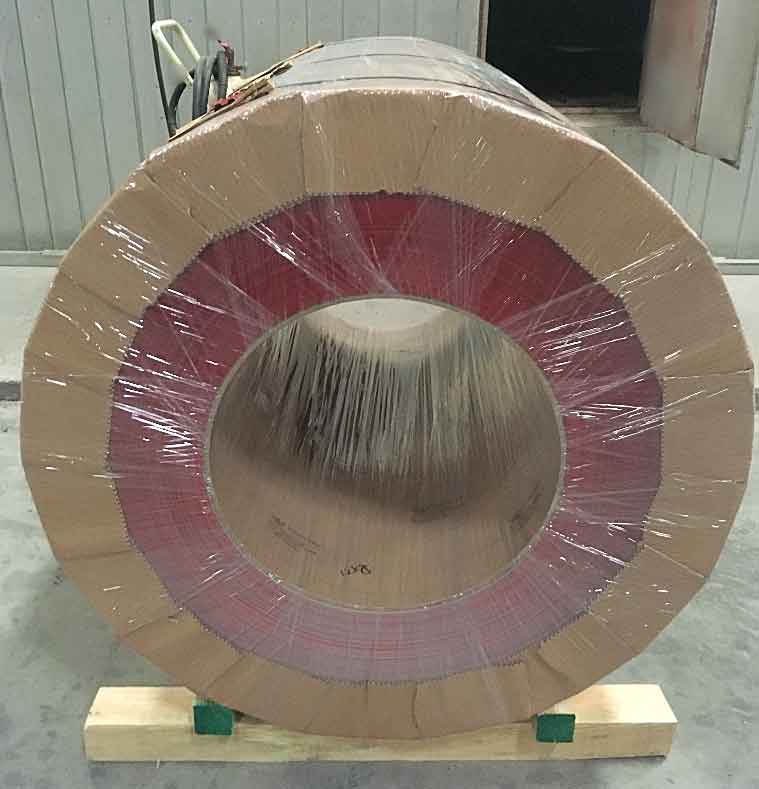

Aluminium coils export standard sea worthy wooden pallet eye to sky (Vertical Type)

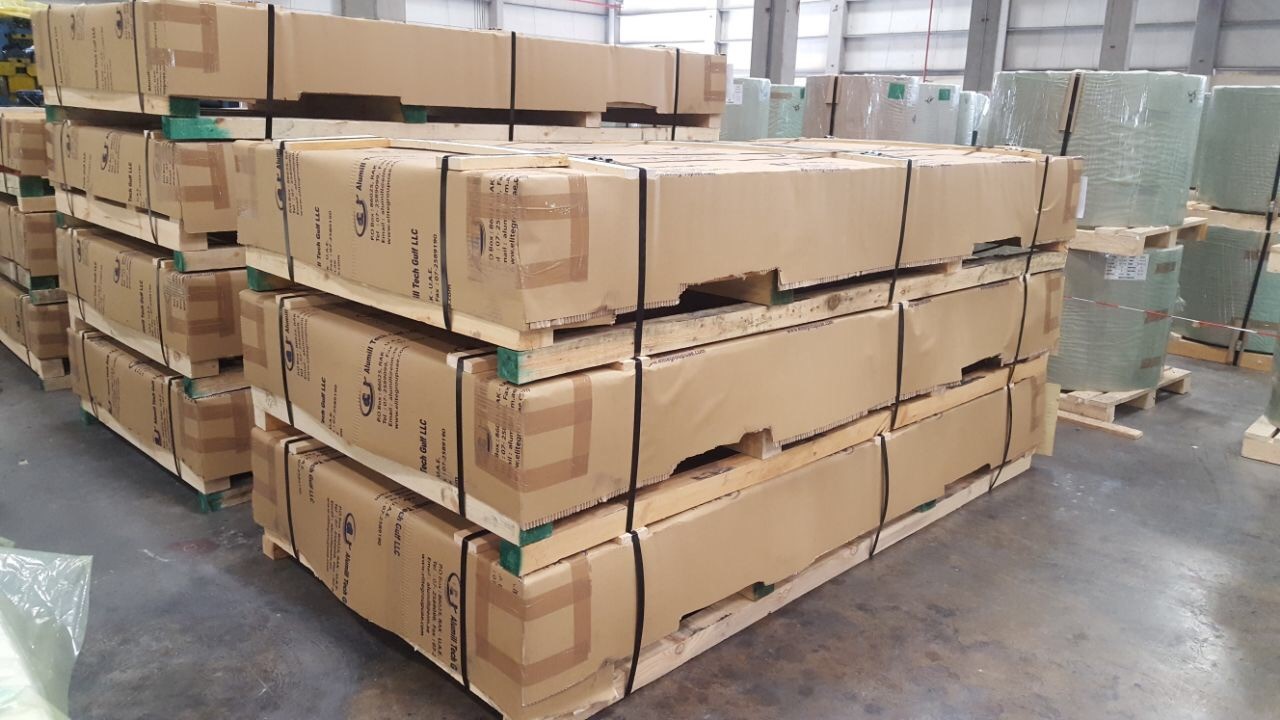

Aluminium sheets export standard sea worthy wooden pallet with interleaving paper in between
