Elite Group of Companies through the Extrusion subsidiaries deploy 7 extrusion lines offering a wide
array of premium, innovative products for any architectural and non-architectural applications.
We process mill finish profiles, powder coated profiles
(vertical & horizontal lines), wood coated profiles and anodized profiles.
The 6xxx series are the ones most selected for extrusion
ALLOYS AA 6063, 6061, 6082
TEMPER T4, T6

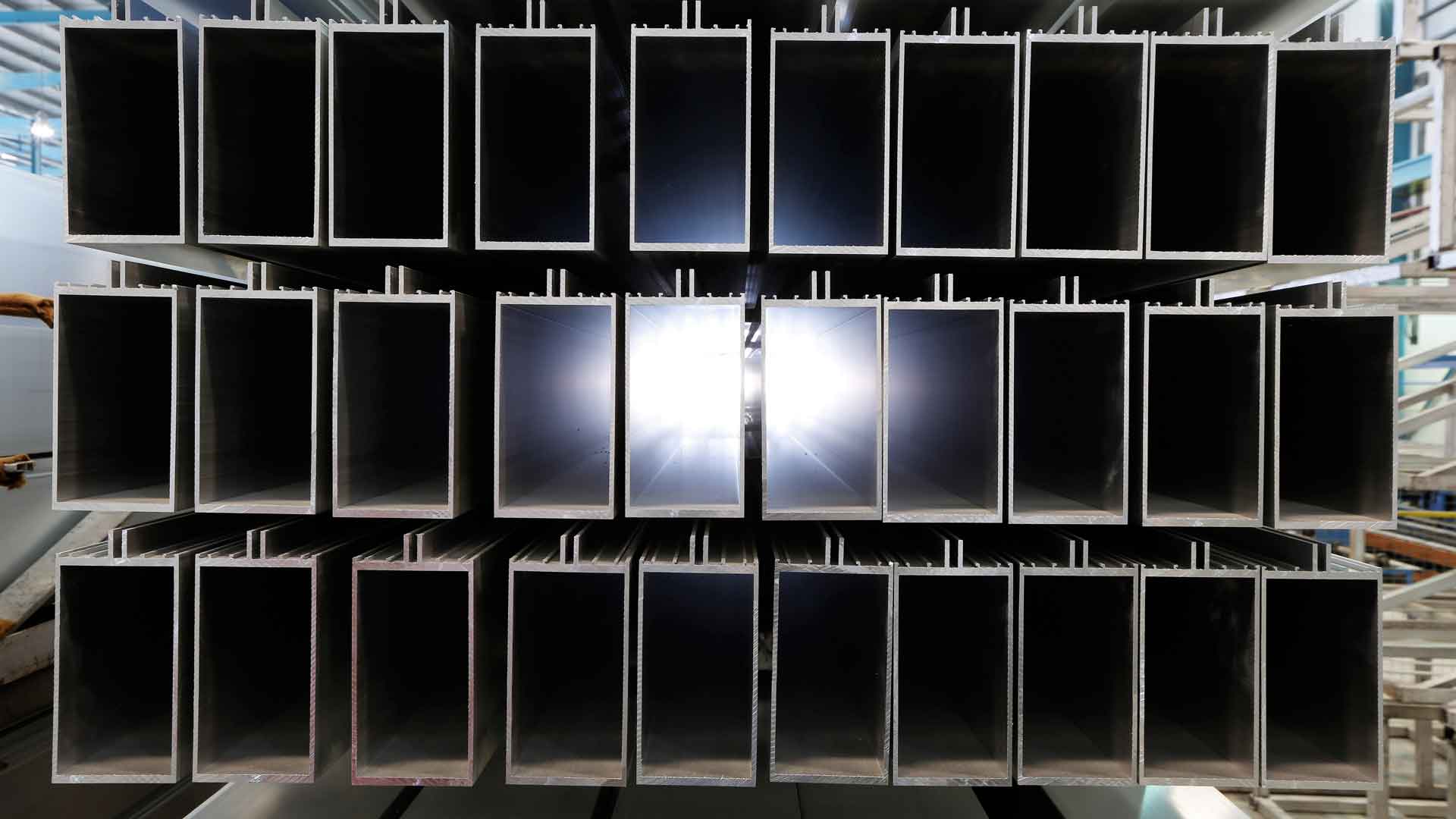

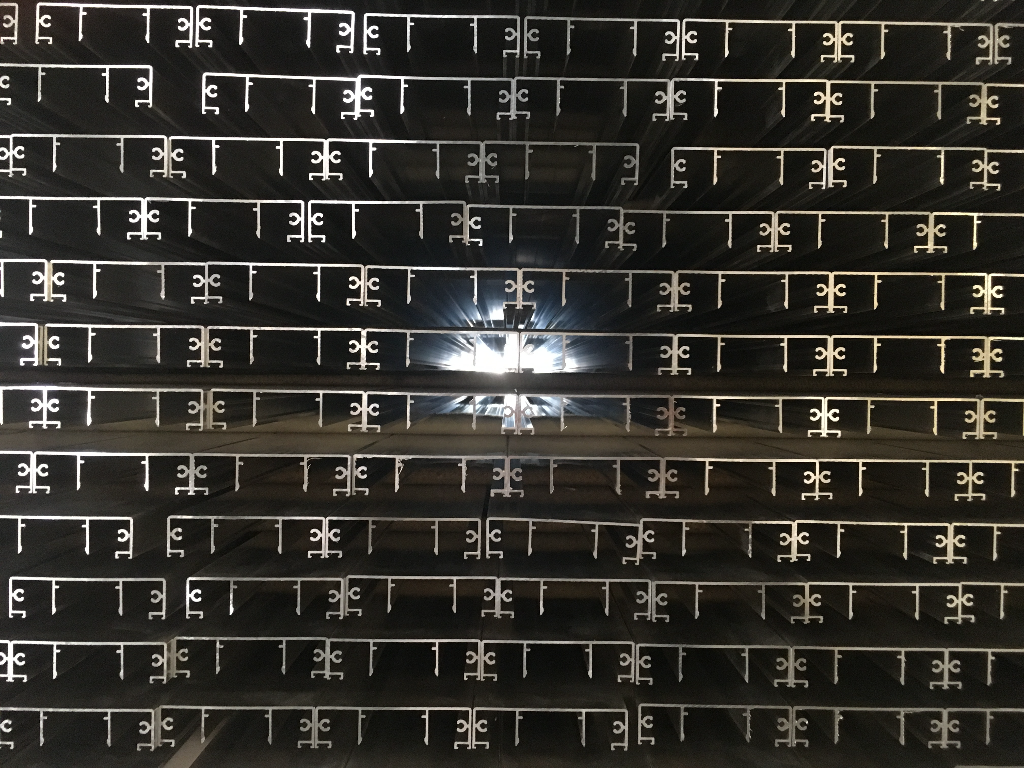

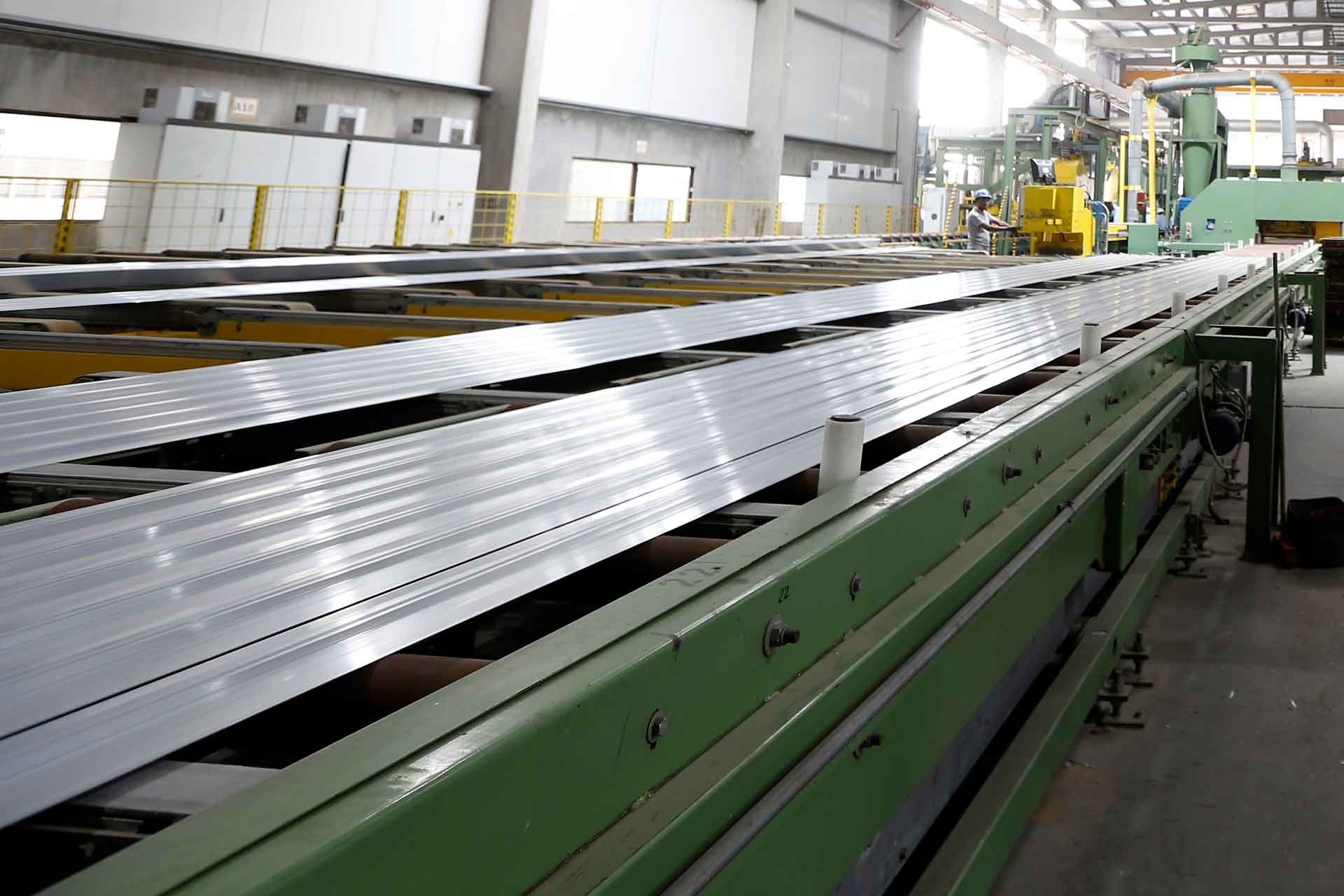

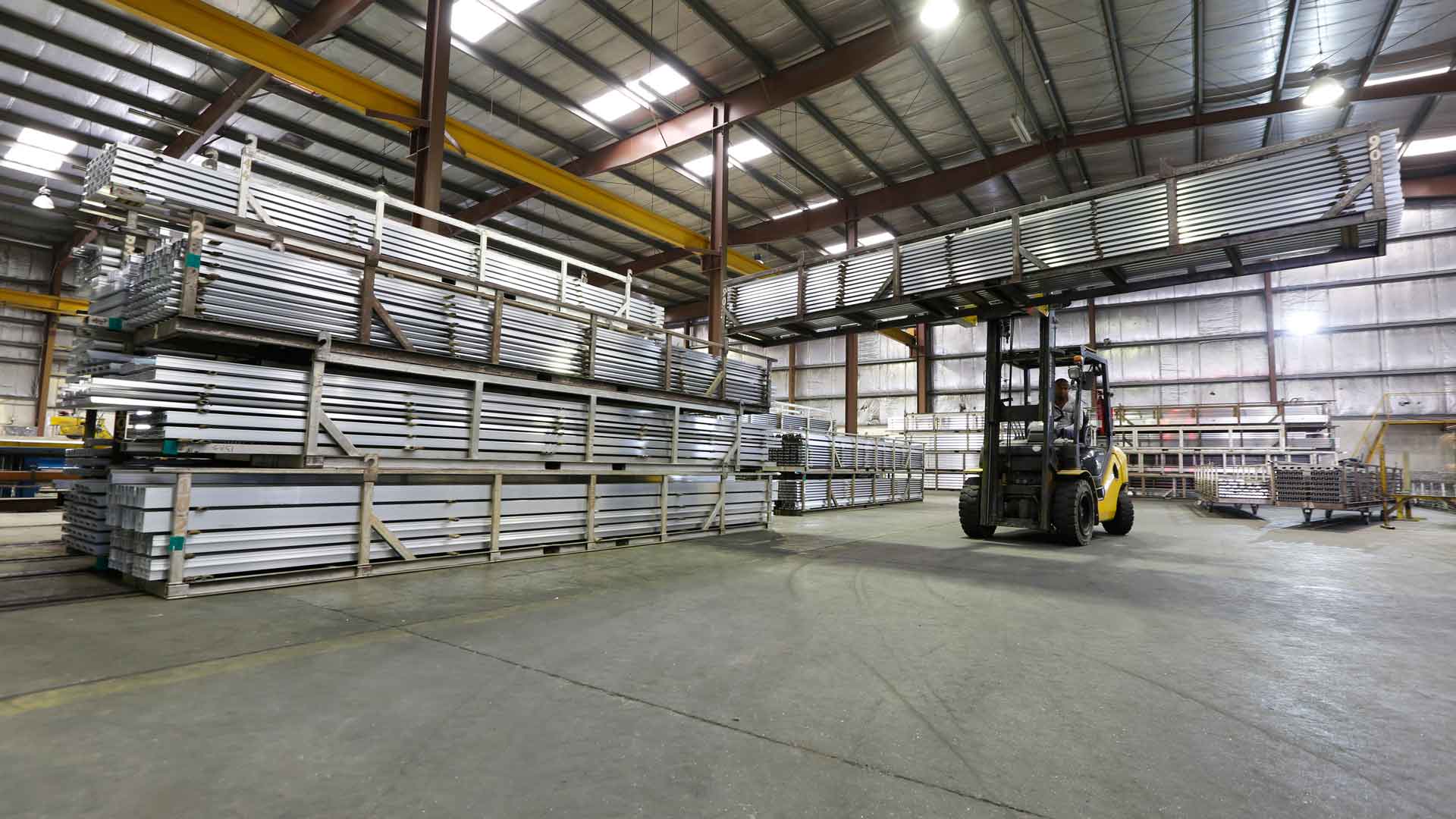

MILL FINISH PROFILES
Windows & doors (casement, sliding & hinged
version), full glazing systems, curtain walls, cladding & roofing, shop fronts louvers &
grills, handrails & balustrades, kitchen profiles, furniture & partitions. So as HVAC scope,
piping & ducting, sign board, scaffolding sections among others.
In addition we offer all the most common section like squared & round bars, equal & unequal
angles, rectangular & squared tubes with different design, dimensions and thicknesses.

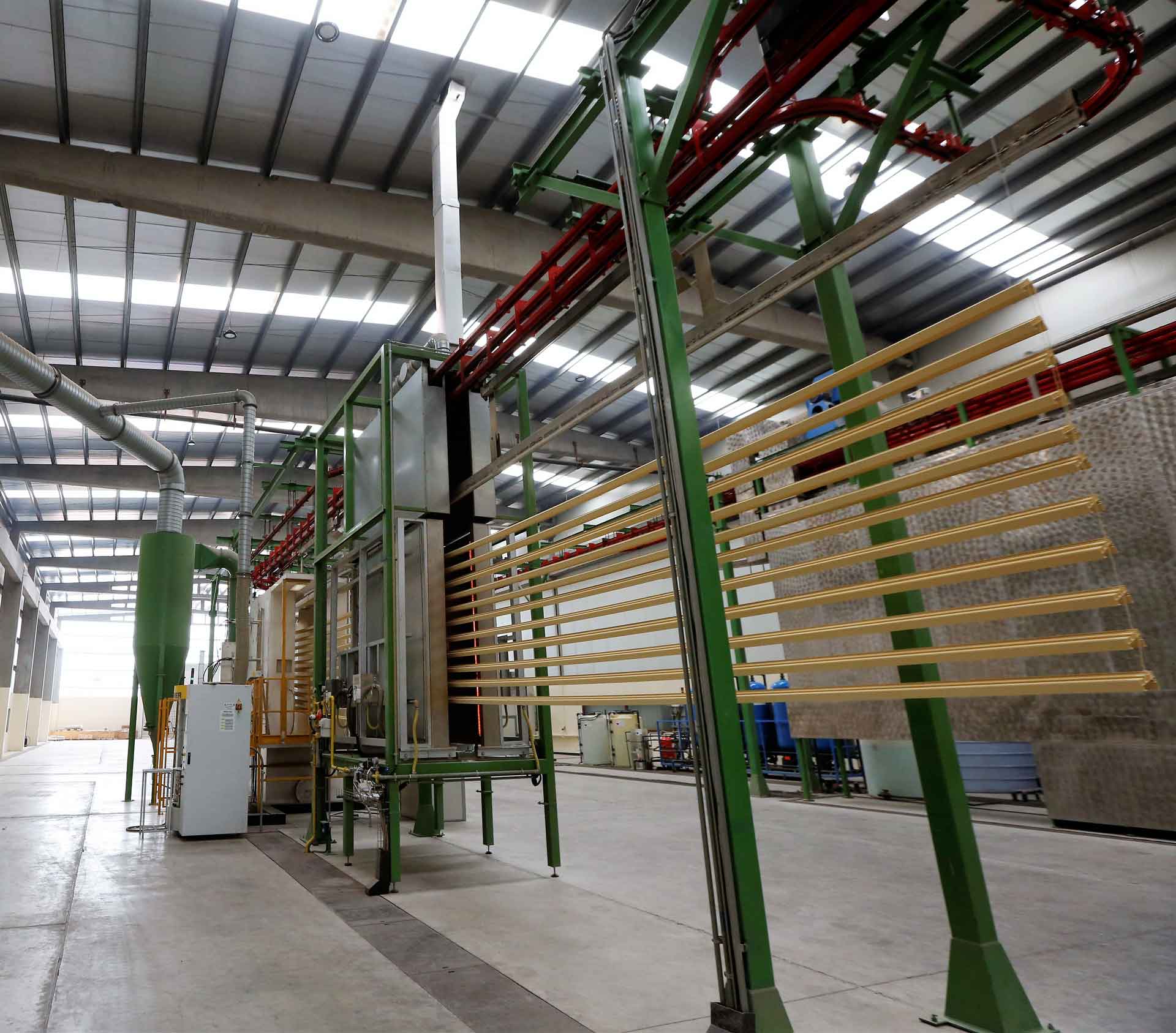

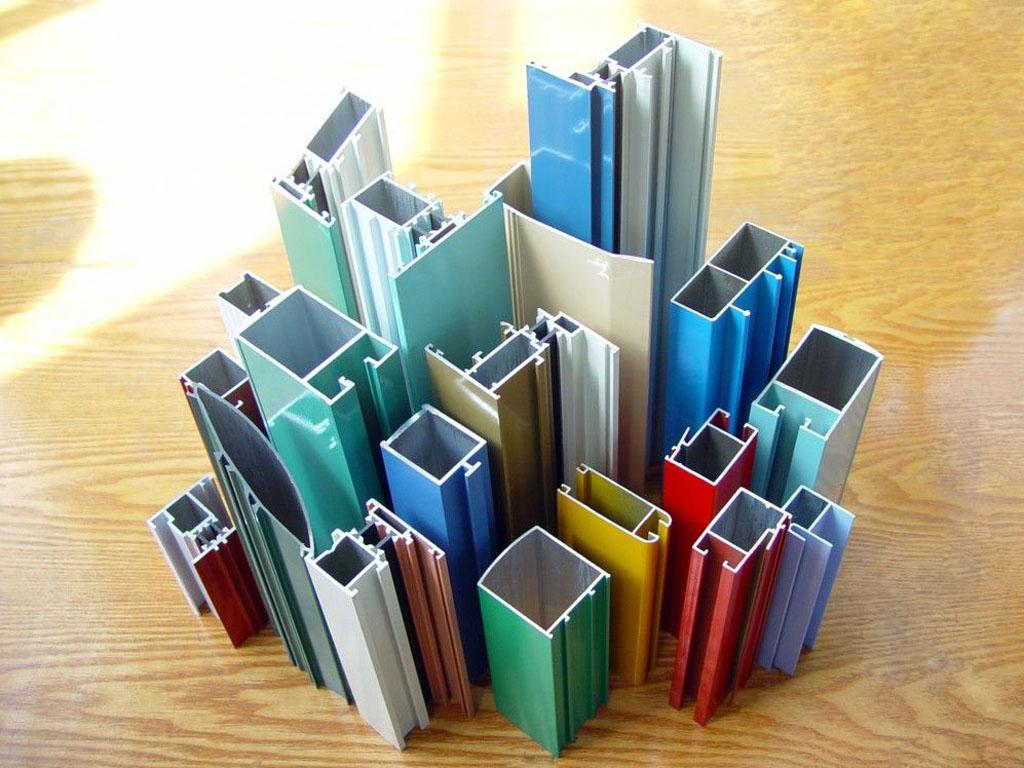

POWDER COATED PROFILES

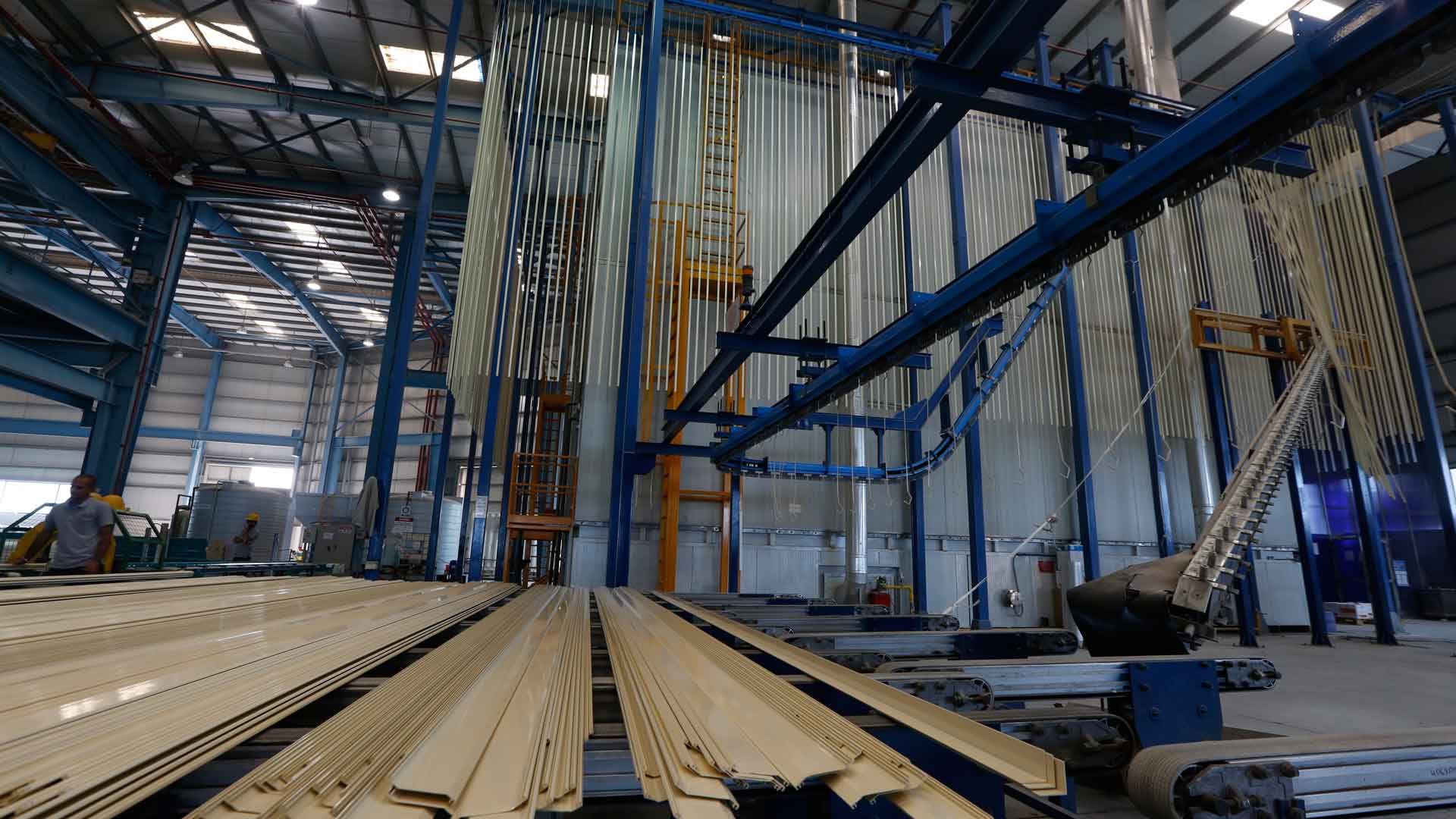

The extrusion is “QUALICOAT” certified for
high quality Powder Coated Aluminium Profiles, coating with vertical & horizontal high
capacity European plants.
Powder coating is a type of coating that is applied as a free-flowing, dry powder. The
coating is typically applied electrostatically and is then cured under heat to allow it to
flow and form a “skin”. The powder may be a thermoplastic or a thermoset polymer and it is
usually used to create a hard finish that is tougher than conventional paint. It prevents
from high corrosion in acidic and alkaline environments.

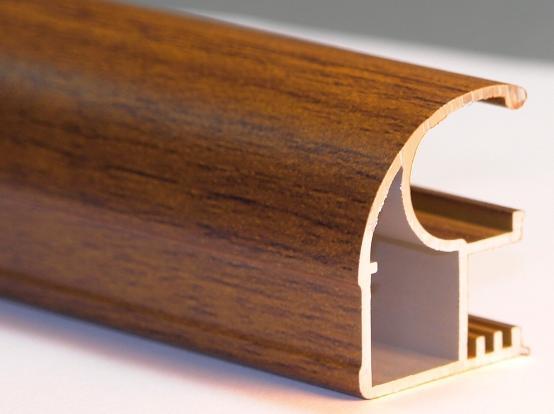

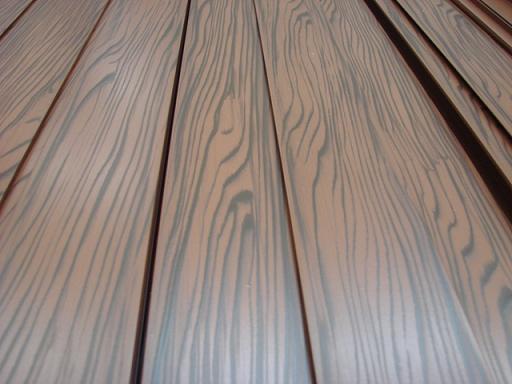

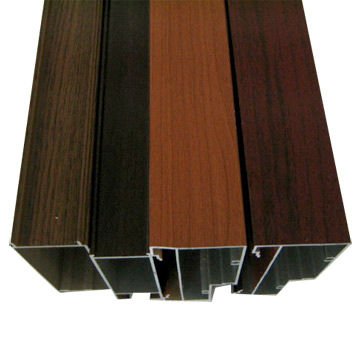

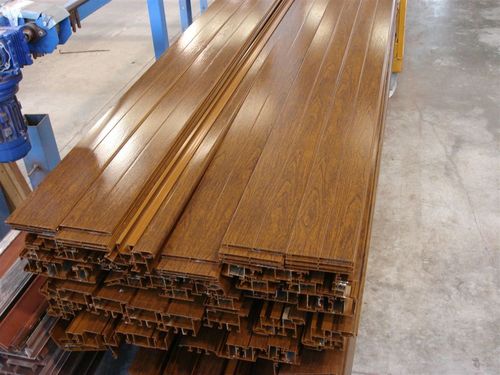

WOOD COATED PROFILES
The wood effect finishing is a film coating
process offer a perfect integration with the aluminum properties and offering a natural
appearance of wood. The products have stable quality, appealing appearance and therefore a
higher value of decoration.
The wood pattern coating can be cured and transferred to the surface of aluminum profile
under a temperature of 200 degree Celsius and reach a usual thickness of 60 μm.
The wood effect can be applied to any profile for exterior and interior design such as
window profiles or kitchen cabinet.

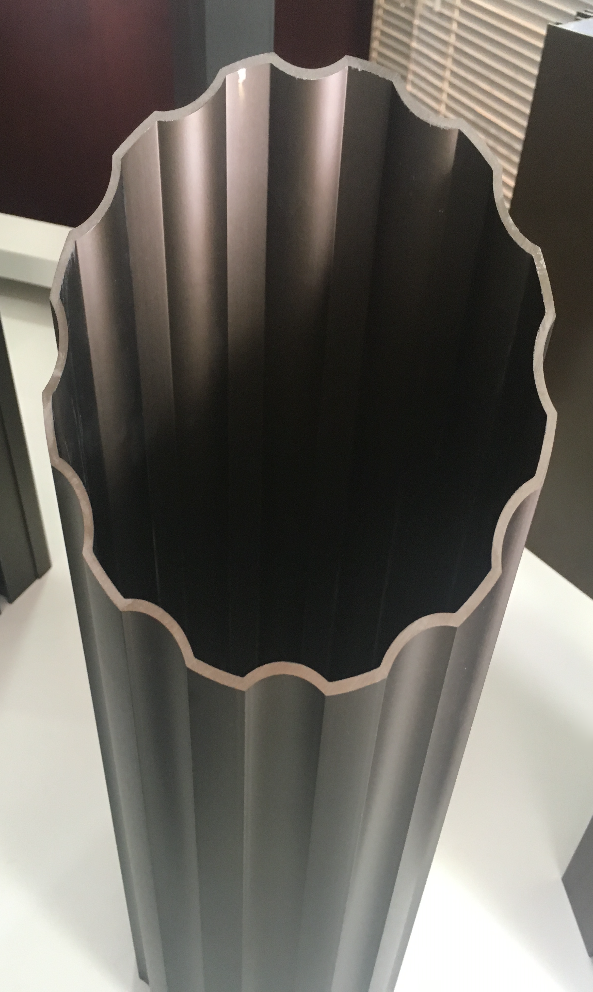

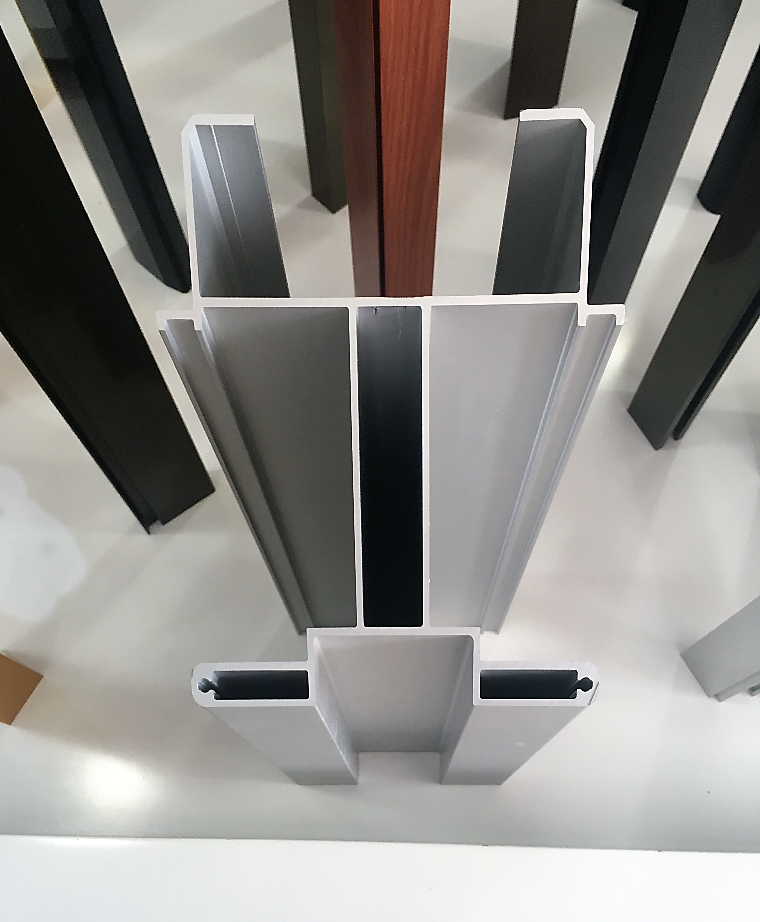

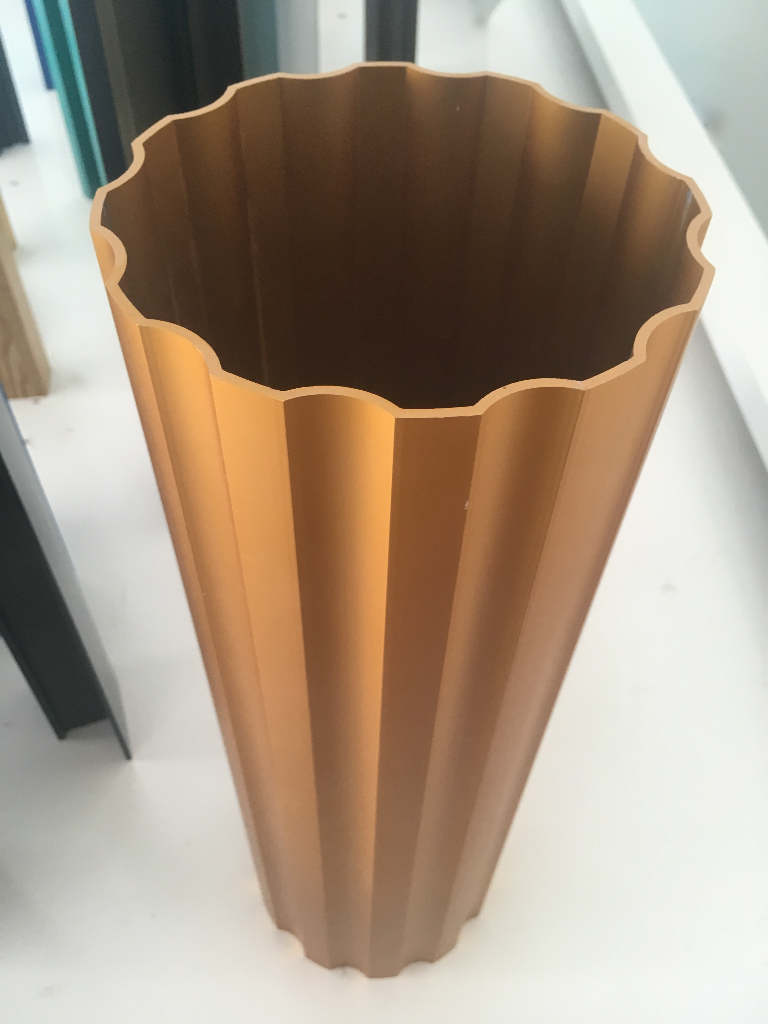

The extrusion is “QUALANOD” certified for
high quality Anodized Aluminium Profiles. Anodizing is a process in which the aluminium
profiles are immersed in an acid-based electrolyte tank and a current pass through the
The aluminum profiles serves as the anode, so the electrolyte releases oxygen ions on the
profile’ surface. The oxygen simultaneously react with the aluminum surface to form a hard
oxide film. The full process includes pre-treatment and post-treatment and is called
the part to be treated forms the anode electrode of an electrical circuit.
Anodizing increases resistance to corrosion, offer aesthetic touch and provides better
adhesion for paint primers and glues than bare metal.

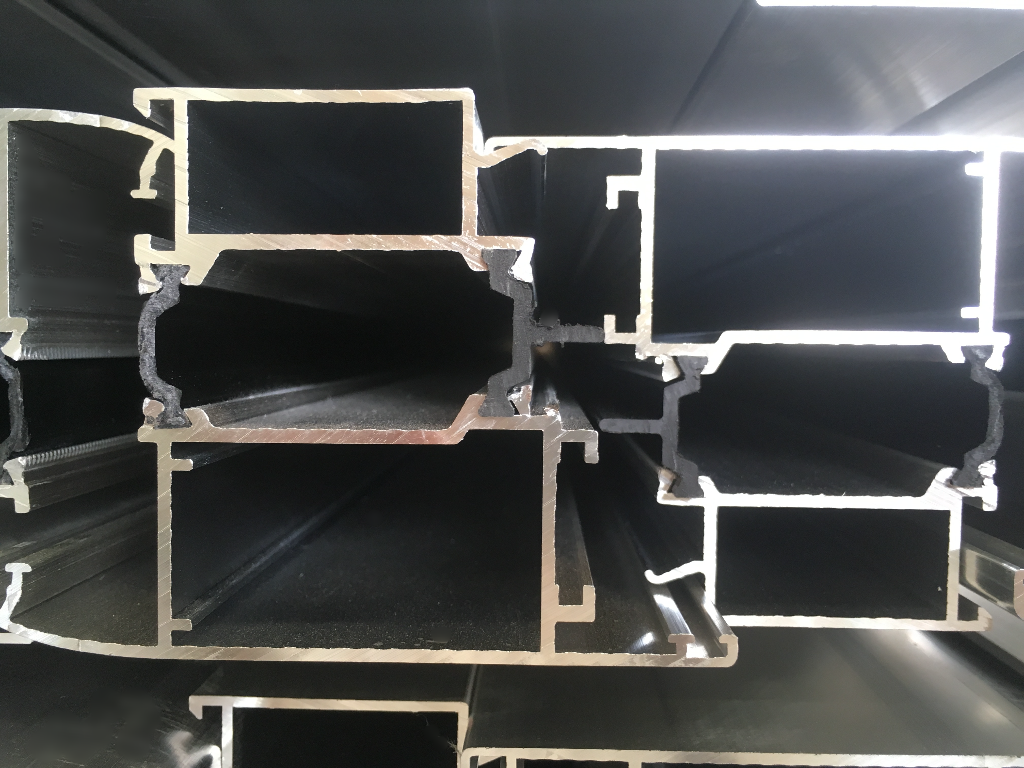

THERMAL BREAK PROFILES
We extrude aluminum sections suitable for
further crimping for thermal break profiles & systems. In architecture and building
construction a thermal break is an element of low thermal conductivity placed in an assembly
to reduce or prevent the flow of thermal energy between conductive materials.
Subsequently aluminum windows and doors
separating the frame into two separate interior and exterior pieces joined with a less
conductive material reduces temperature transfer. Thermal breaks are made of hardy, rigid,
low thermal conductive polyamide or polyurethane which is mechanically locked in aluminum
window framing. Moreover thermal breaks can have the added benefit of reducing sound
transmittance by dampening vibration.
We have incorporated certified glazing systems:
THERMOS 110® and THERMOS 120® sliding series, thermal break.
ECO 500 ® casement and sliding series, thermal break.
